Technical Development – internally referred to at Audi as “TE” – is the place where the brand’s heartbeats. It is the place where “Vorsprung Durch Technik” becomes a reality. The engineers develop innovations from the initial idea to market level. The new “Audi TechFocus” online newsletter provides detailed insights behind the scenes of TE. The topic of the premiere issue: patents. Or: this is how we document “Vorsprung Durch Technik.”
In 1970 – in other words, exactly 50 years ago – the “Technical Development” department moved into the first new facilities on the northern periphery of Ingolstadt. The complex has continuously been expanded ever since. By now, nearly 10,000 technicians and engineers are engaged in research and development just at the Ingolstadt location. Together with the nearly 2,000 TE employees in Neckarsulm and the developers in Győr, Beijing and San José Chiapa they form the innovation laboratory of the Four Rings – and very successfully so. The number of patent applications filed is one of the benchmarks for the brand’s strong innovative prowess.
How many patent applications does Audi file per year?
In 2019, there were more than 1,200 patent applications filed, in other words, more than three on each day of the year. The subject matter and focus of patents change in line with shifts in social awareness. In earlier years, the main emphasis was put on ideas and inventions from the areas of chassis, conventional engine technology and transmission. At the moment, digitalization and electric mobility are at the top of the list.
In total, the company currently holds some 13,000 patent families worldwide, which equates to about 23,000 individual patents and patent applications. For the complex procedures involved, Audi employs specialized patent attorneys. “We protect the ideas and inventions of our engineers and thus our ‘Vorsprung Durch Technik,’” says Jama Askaryar, the patent attorney responsible for electric and hybrid drives.
AUDI AG is the leader in patent applications filed for electric drives in Germany
Whereas many competitors purchase electric drive technology, Audi develops it in-house in many areas. As the most innovative premium brand, Audi is the leader in patent applications filed for electric powertrains in Germany. The statistics prove this, too: According to an analysis of the German Patent and Trade Mark Office and the European Patent Office (EPO), in 2019, a total of 660 patents were filed with effectiveness just in Germany. These applications refer only to vehicles with electric powertrains. Compared to 2017, this corresponds to an increase of 42 percent.
With 57 patent applications filed for the plug-in hybrids and the models of the all-electric Audi e-Tron, Audi occupied the top spot. “This is ‘Vorsprung Durch Technik’ and shows the great innovative spirit of our developers,” says Roman Straßer, Head of Development, Power Electronics and Charging Systems. But not just the Patent Office documents Audi’s top ranking in the area of ideas and inventions. In 2020, the renowned Center of Automotive Management (CAM) recognizes Audi as the winner in the area of alternative drives with the AutomotiveINNOVATIONS Award.
What are examples of patent applications?
Two Audi engineers have invented a new method of operating the electric machines of the Audi e-Tron. Their function for predictive energization of the e-machines via smart and innovative power electronics enhances driving dynamics. At the same time, it minimizes electric power consumption by “anticipating” the desired driving commands and predictively initiating them.

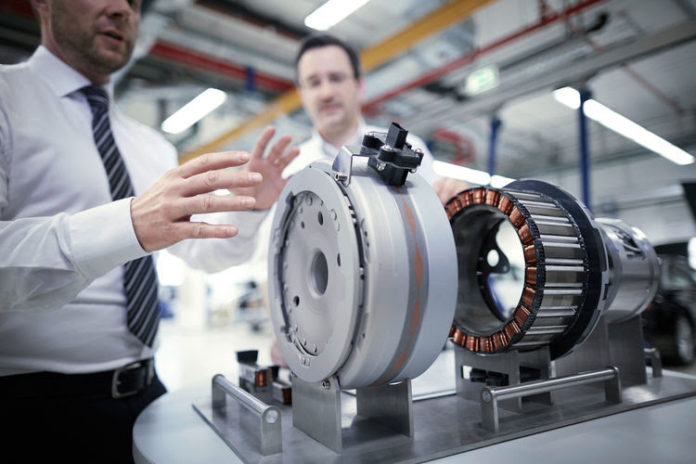

Audi patents are also found in the field of fluid mechanics, in other words, the utilization of the physical flow behaviour of fluids. For instance, to efficiently cool the rotor in an electric motor. Traditionally, the heat is dissipated from the outside. Audi does this additionally via a coolant fluid and smart cooling ducts directly in the rotor core – in other words, from the inside. The complex technological feat of assembling the individual rotor sheets results in particularly effective rotor cooling.
Another example of e-mobility ingenuity at Audi is a patent on a solution enabling the absorption of hectic accelerator pedal actuation, which makes it possible to avoid load alternations from acceleration to deceleration mode. This is achieved by complex filtering of driving behaviour, which considers and optimizes all parameters from the driver’s wish to the current torque distribution on the two axles and on all four wheels.
Technology highlights from Audi’s history
The fast-running permanent Quattro all-wheel-drive has been and will remain a shining beacon of “Vorsprung Durch Technik.” With the all-wheel-drive technology unveiled in the original Quattro at the 1980 Geneva Motor Show following a three-year development period, Audi revolutionized not only the automotive industry but motorsport, too.
A large number of other Audi innovations and patents have decisively shaped the automobile as well. For instance, the Audi Space Frame (short: ASF) unveiled at the Frankfurt Motor Show IAA in 1993, on which aluminium replaced the previously used steel as the material for the unibody in the Audi A8. To this day, this lightweight engineering know-how has seen consistent further development. The current Audi A8 in its structural components even combines a material mix of four different lightweight materials: aluminium, steel, magnesium and carbon fibre reinforced plastics (CFRP) – for a new level of multi-material design.
